Technical selection details
| SKU | LQ-6536 |
|---|---|
| Interface | M12 |
| Pins | 4 |
| Mating contacts | Male & female |
| Cable category | Cat6 |
| Other end | RJ45 |
Match the pin assignment and dimensions to your equipment before ordering.
Need a drawing or pinout?
Send the device model or a connector photo. We can check the matching interface and available technical information.
Request drawing / pinout ↗Need a different configuration?
Ask about another length, connector, cable color or termination.
Customize this connection ↗Product details

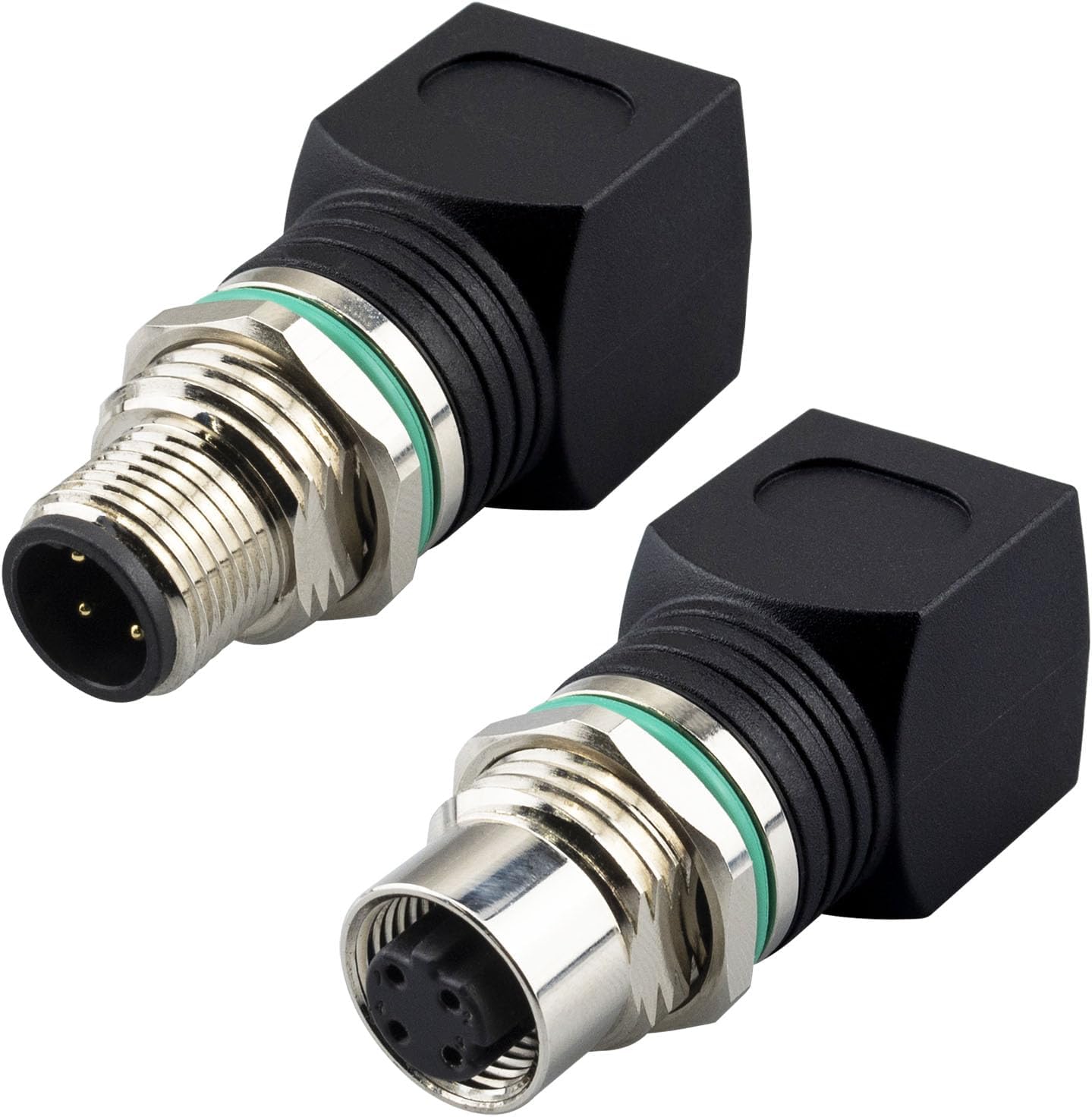

- M12 to RJ45: M12 to RJ45 Adapter，D-Coding，4Pin，Shielded，24AWG，IP68 Waterproof，This RJ45 M12 connector is compatible with Cat6, Cat5e, Cat5 networks.
- Easy to Use: 12mm Connector Plug:Easy quick connect and disconnect coupling;No tools required for installation and removal,M12 to RJ45 Ethernet Adapter provide quick and easy connection between field devices and terminal connections,flexible and convenient plug-and-play.Convenient inline adapter avoids bending of the cable.
- IP68 Waterproof: Industrial Ethernet 4 Pin D-Code M12 RJ45 Shielded Connector are IP68 Compliant.High elastic rubber ring and clamping nuts provide a perfect waterproof /dust-proof, prevent the network parts from moisture, dirt rain & snow and insects for quality connections-a perfect solution to protect your RJ45 Ethernet cable.

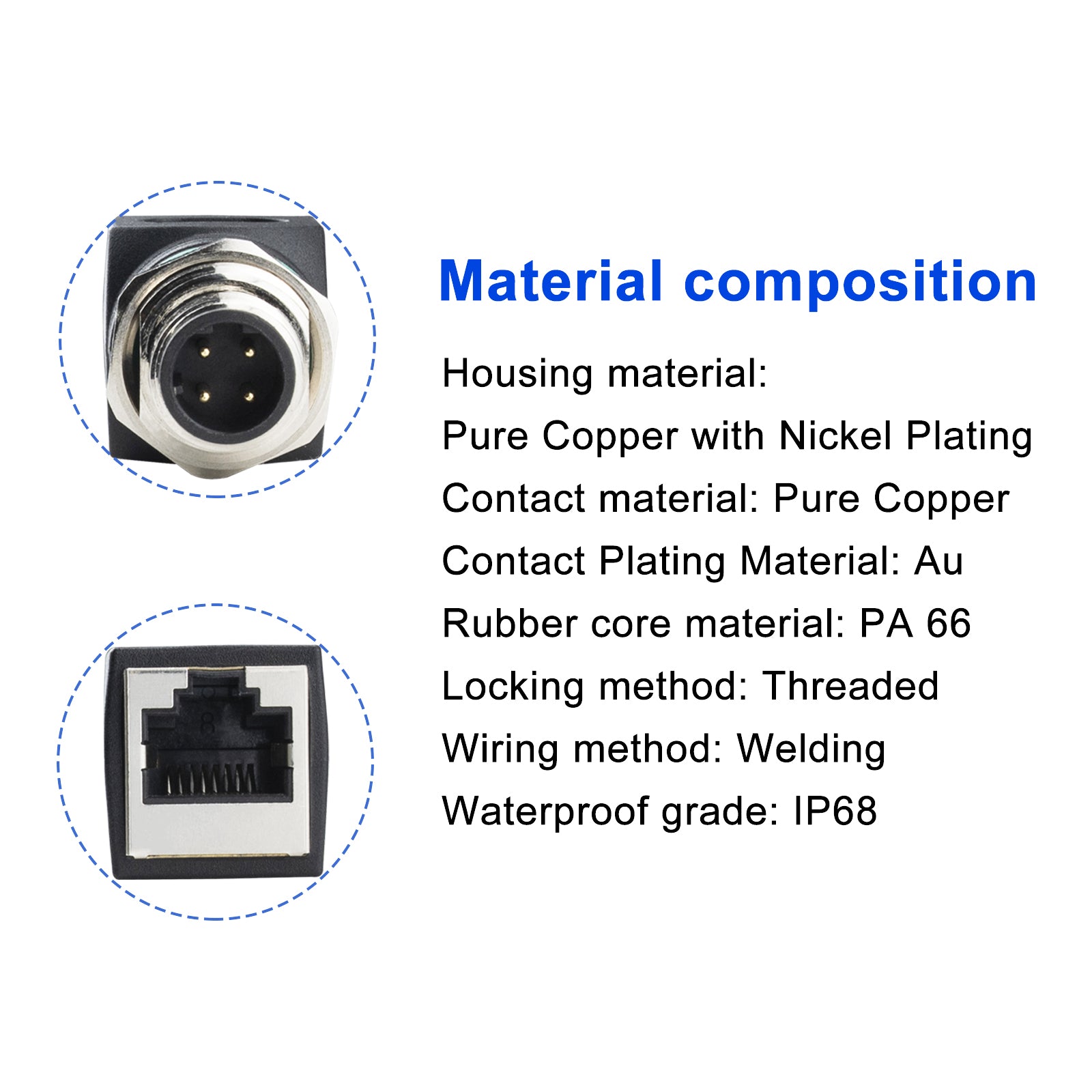

- High quality &100% Shielded: RJ45 to M12 Connector Industrial Ethernet Adapter use professional high quality black rubber PA66 makes it Insulation and flame retardant.Gold plated brass pins for excellent connectivity.Thread locking mechanism,anti vibration locking design,12mm thread joint.100% Shielded,ensure the stability and reliability of data and signals.
- Application: Cat6/Cat5 M12 4-Pin to RJ45 Connector widely used in Miniature sensors Industrial camera Electrical bike Packaging,Labeling & Logistic Factory automation and fieldbus module.
Confirm the complete assembly pin assignment and required network performance with your equipment documentation. Contact us for available technical details before ordering.
