NMEA 2000
Marine kit overview
Device compatibility, power requirements and network termination must be confirmed for each installation.
Product details

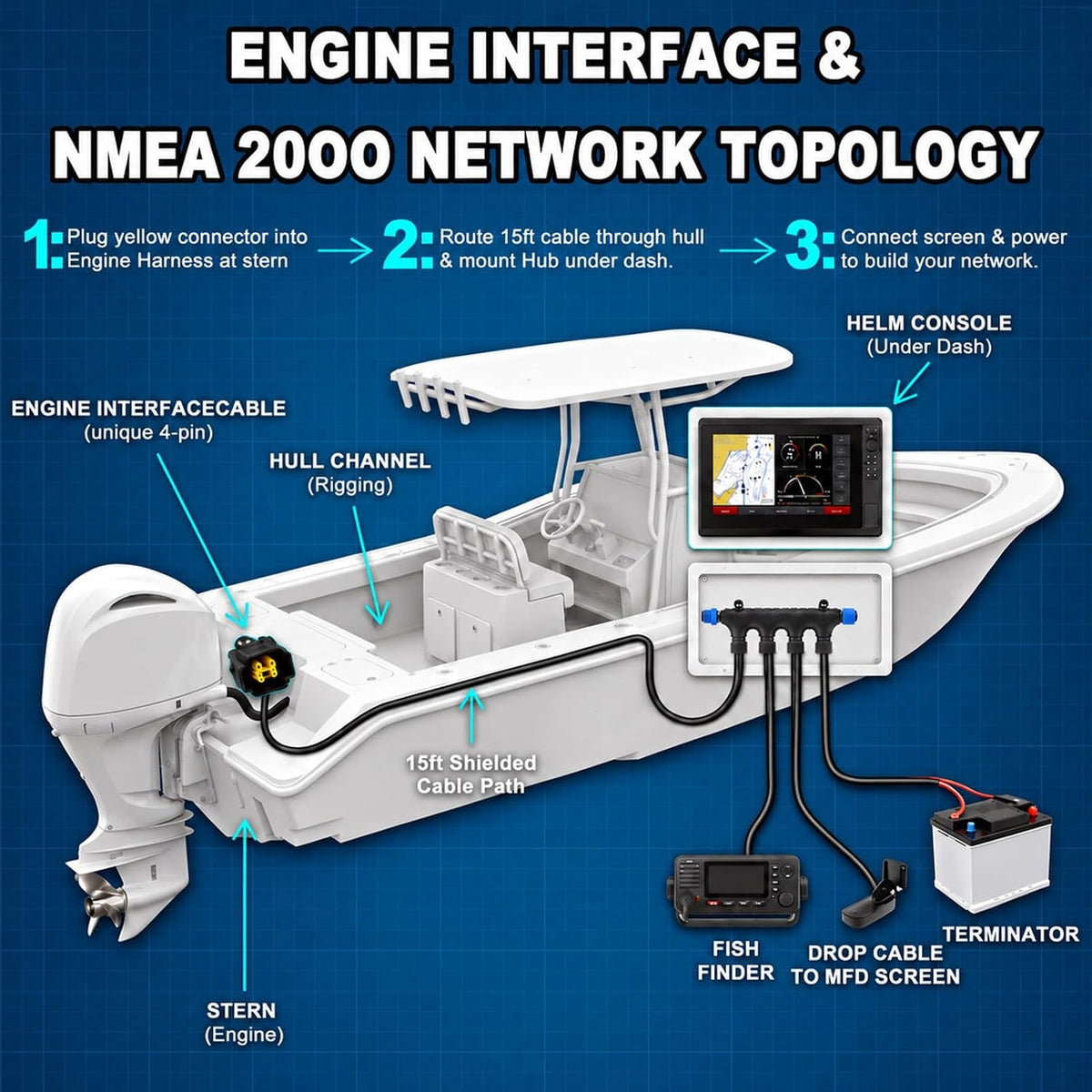

Connect a supported Yamaha outboard to an NMEA 2000 marine display with a four-port network kit and dedicated engine interface cable.
Engine information at your helm
View supported engine data such as RPM, fuel rate, voltage, operating hours, temperature and pressure. Available readings depend on the engine, interface and display.

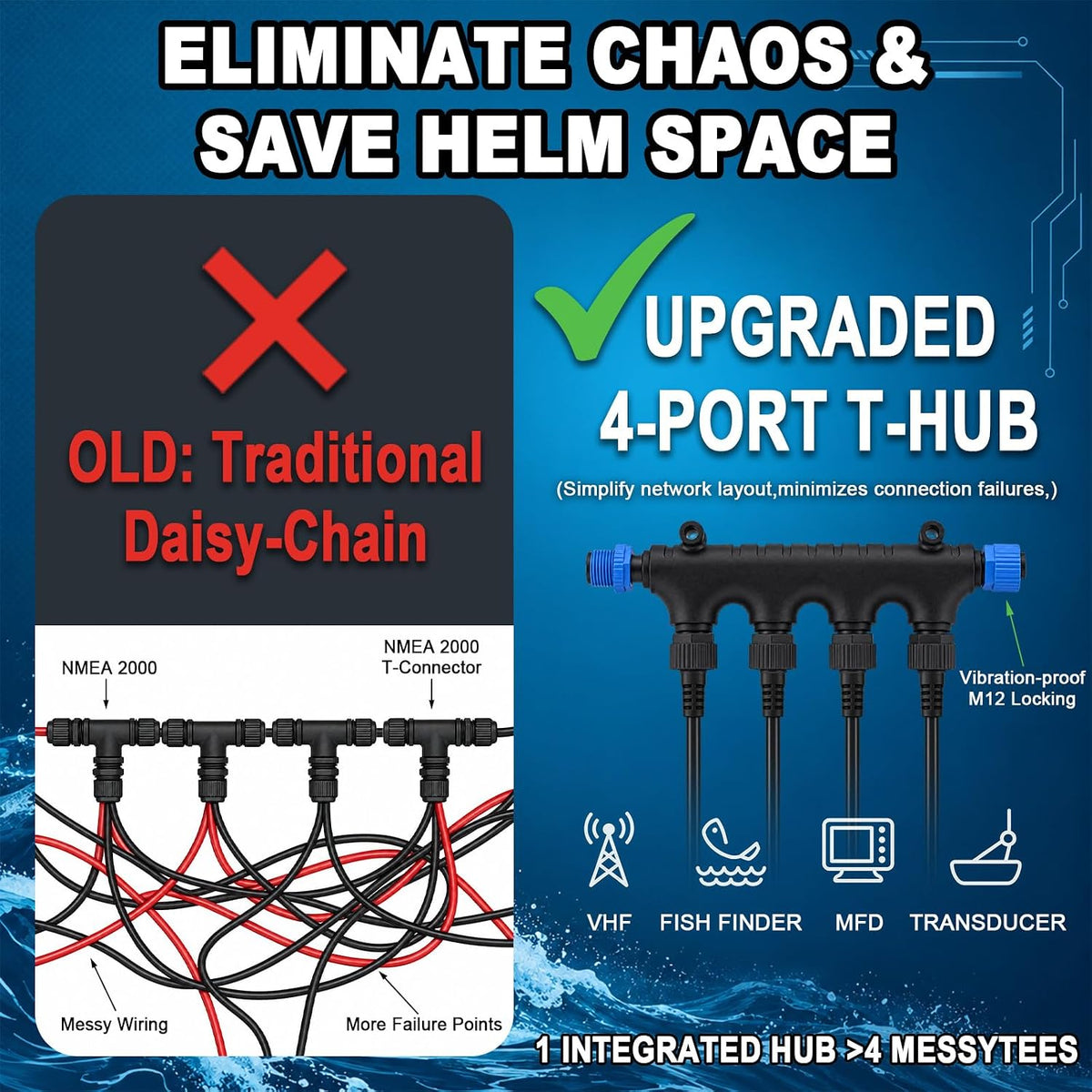

A tidier four-device network

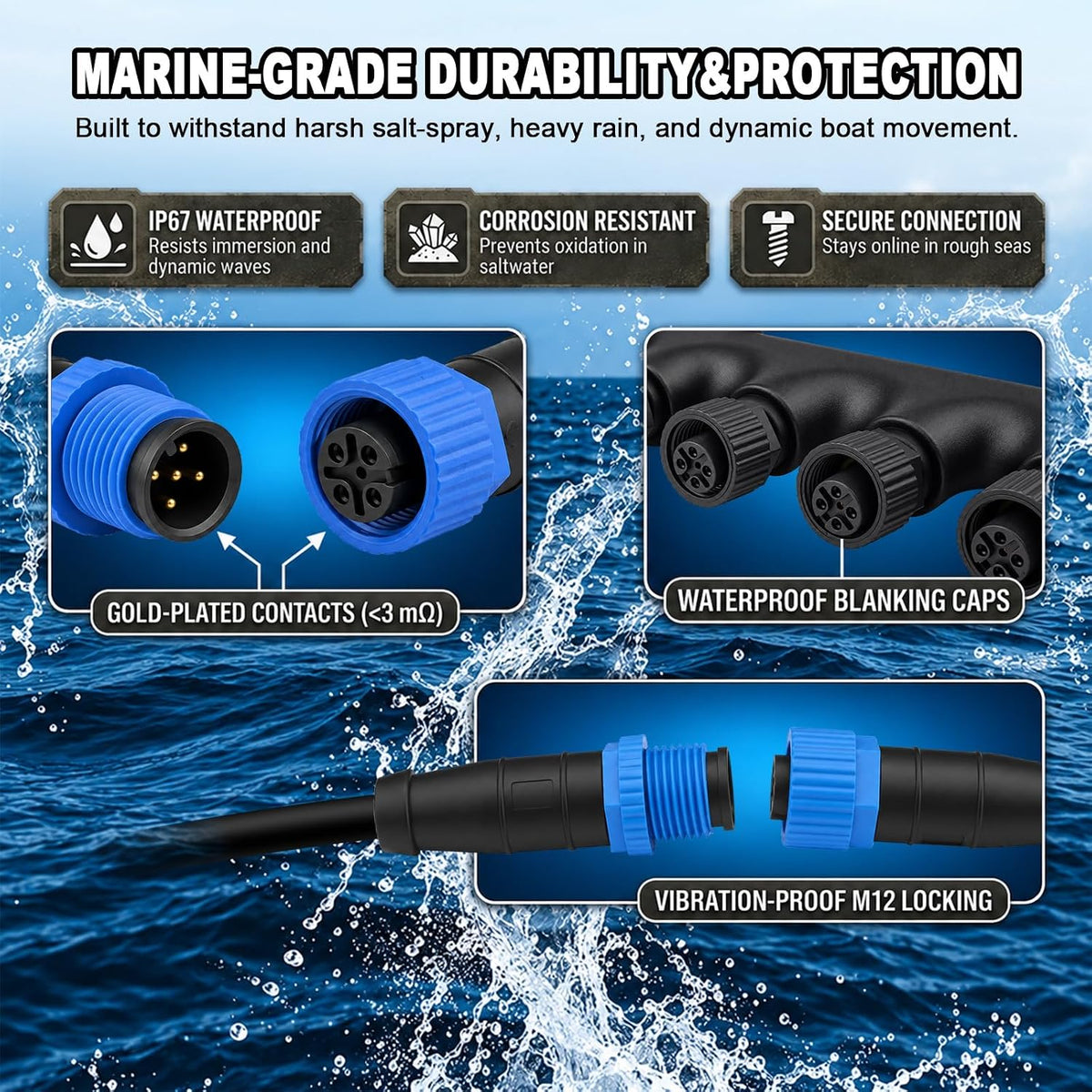

The M12 five-pin multi-tee hub provides four device drop ports in one block, reducing separate tee connections. IP67-rated connectors, gold-plated contacts and two blanking caps support marine installations when correctly assembled.
Engine & display compatibility
For supported Yamaha outboards from 2006 onward. Not compatible with Yamaha CommandLink Plus. Connect to compatible NMEA 2000 displays from Garmin, Lowrance, Simrad, B&G, Humminbird or Furuno. Confirm the engine model, year, connector and display support before purchase.

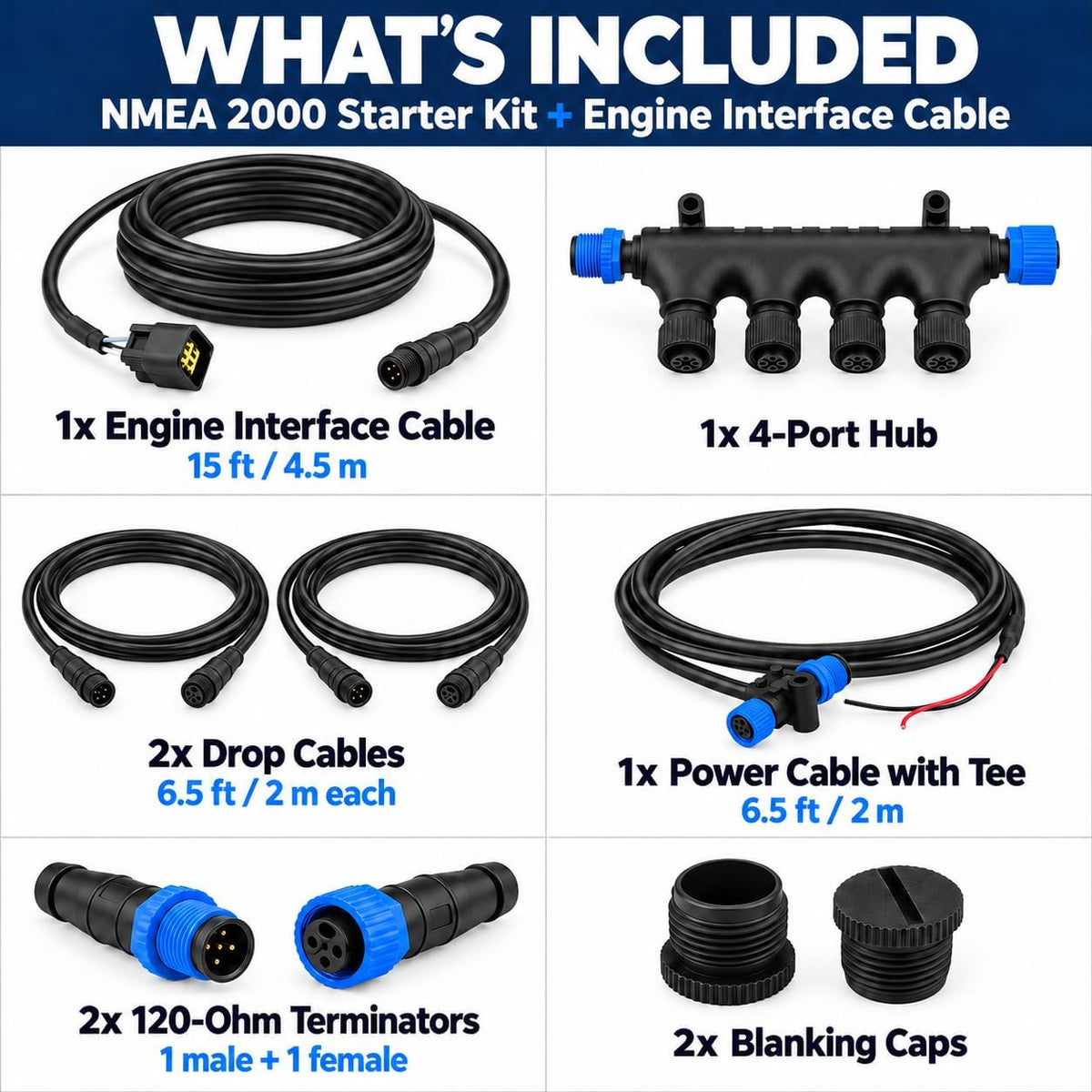

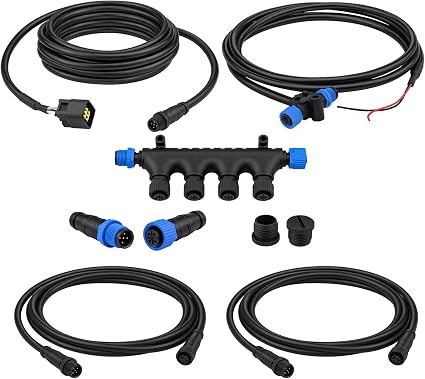

What's in the box
- 1 × 4.5 m Yamaha interface cable: M12 male to four-pin engine connector
- 1 × four-port multi-tee hub
- 2 × 2 m shielded drop / extension cables
- 1 × 2 m power cable with integrated tee
- 1 × male and 1 × female 120-ohm terminator
- 2 × threaded blanking caps
Delivery & support
Ships from China. See our shipping policy for delivery estimates, or contact our team for help selecting.
