NMEA 2000
Marine kit overview
Device compatibility, power requirements and network termination must be confirmed for each installation.
Product details
Build or extend an NMEA 2000 network linking compatible marine displays, chartplotters, GPS units, fishfinders and instruments.
Compact dual-tee layout
The two-port dual T connector groups two device drops in one block to reduce clutter behind the helm. Threaded M12 connections allow assembly without specialist tools; two caps protect unused ports.
Made for marine connections
IP67-rated components, UV-resistant PA66-GF30 housing, tinned copper wiring and gold-plated contacts support onboard installations. Assemble and seal all connections correctly.

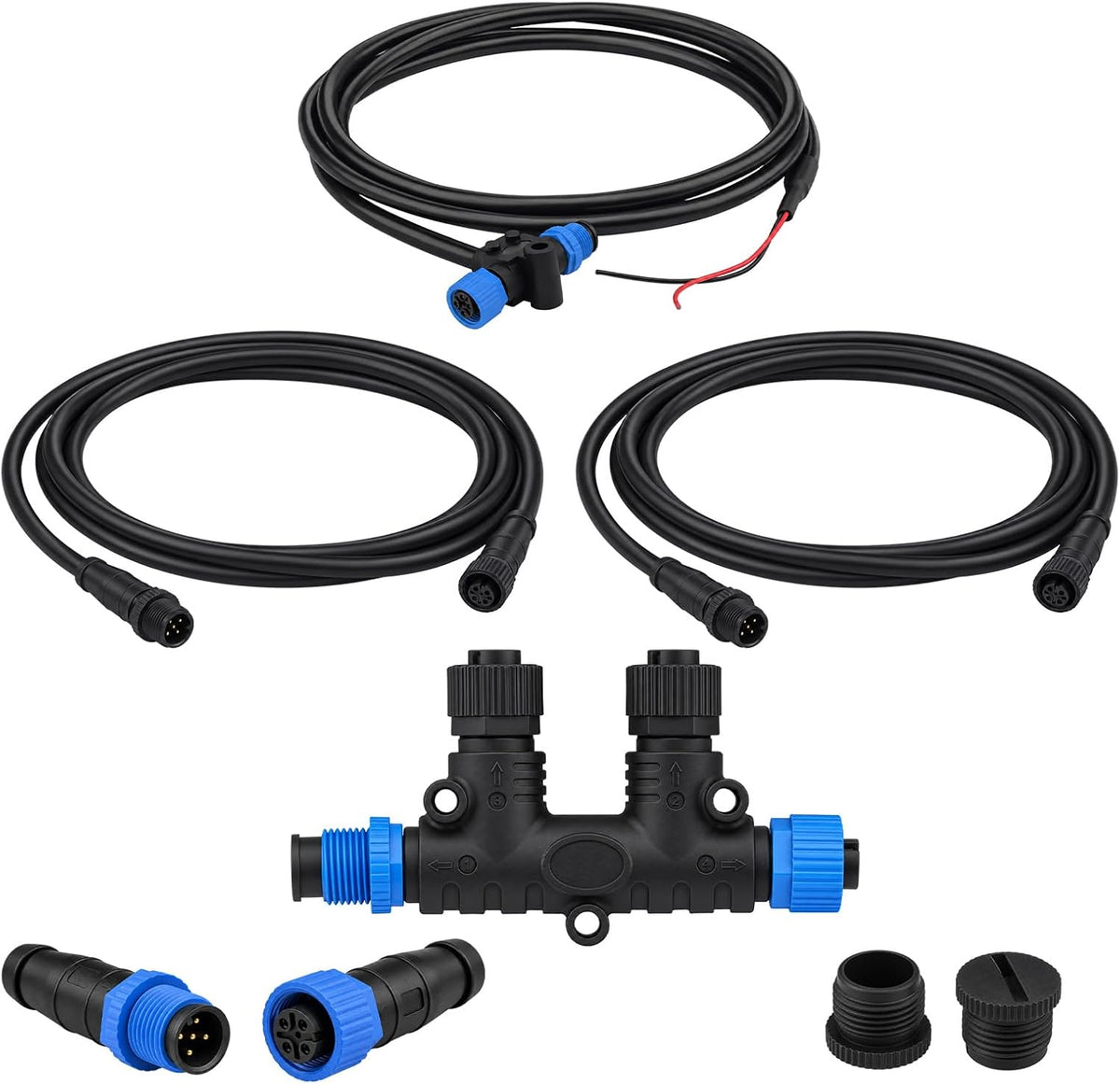

What's in the box
- 1 × two-port dual T connector
- 1 × 2 m power cable with integrated tee
- 2 × 2 m shielded drop / extension cables
- 1 × male and 1 × female 120-ohm terminator
- 2 × threaded blanking caps
Choose the right connection
For compatible NMEA 2000 equipment from Garmin, Lowrance, Simrad, B&G, Furuno and Raymarine. Check the specific device ports and network requirements. This Standard Kit has no engine interface cable; Yamaha or Honda engine data requires the appropriate separate interface. Install terminators at both backbone ends.
Delivery & support
Ships from China. See our shipping policy for delivery estimates, or contact our team for help selecting.
