Technical selection details
| SKU | LQ-6247 |
|---|---|
| Interface | M8 |
| Pins | 4 |
| Mating contacts | Female |
| Length | 2 m |
| Exit direction | Right-angle |
| Other end | Open wire end |
Match the pin assignment and dimensions to your equipment before ordering.
Need a drawing or pinout?
Send the device model or a connector photo. We can check the matching interface and available technical information.
Request drawing / pinout ↗Need a different configuration?
Ask about another length, connector, cable color or termination.
Customize this connection ↗Product details

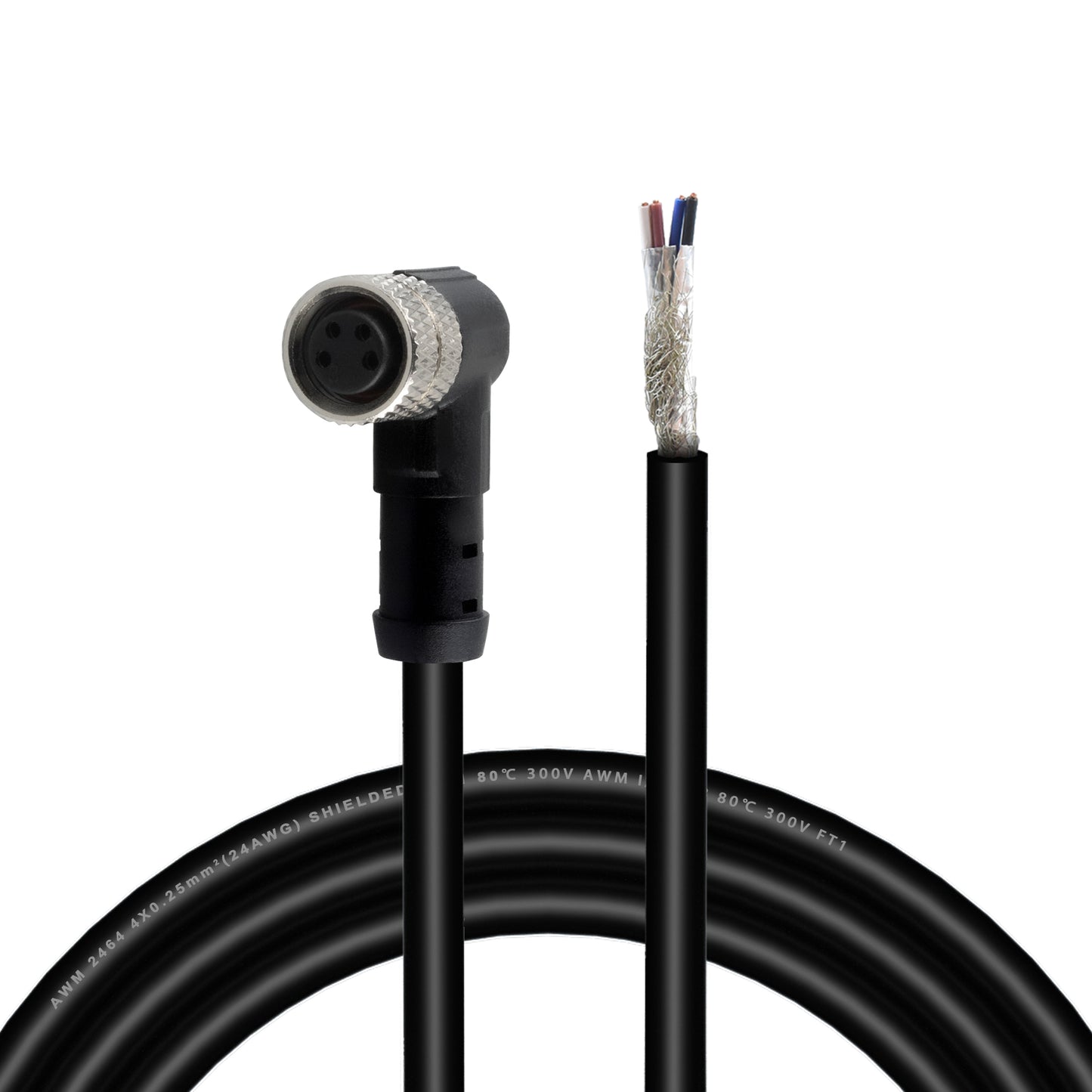

- M8 Connector Cable: M8 single ended connector cable,4 pin with gold plating,A coding ,IP67 waterproof connector,Shielded，24AWG 6.6ft, field wired.

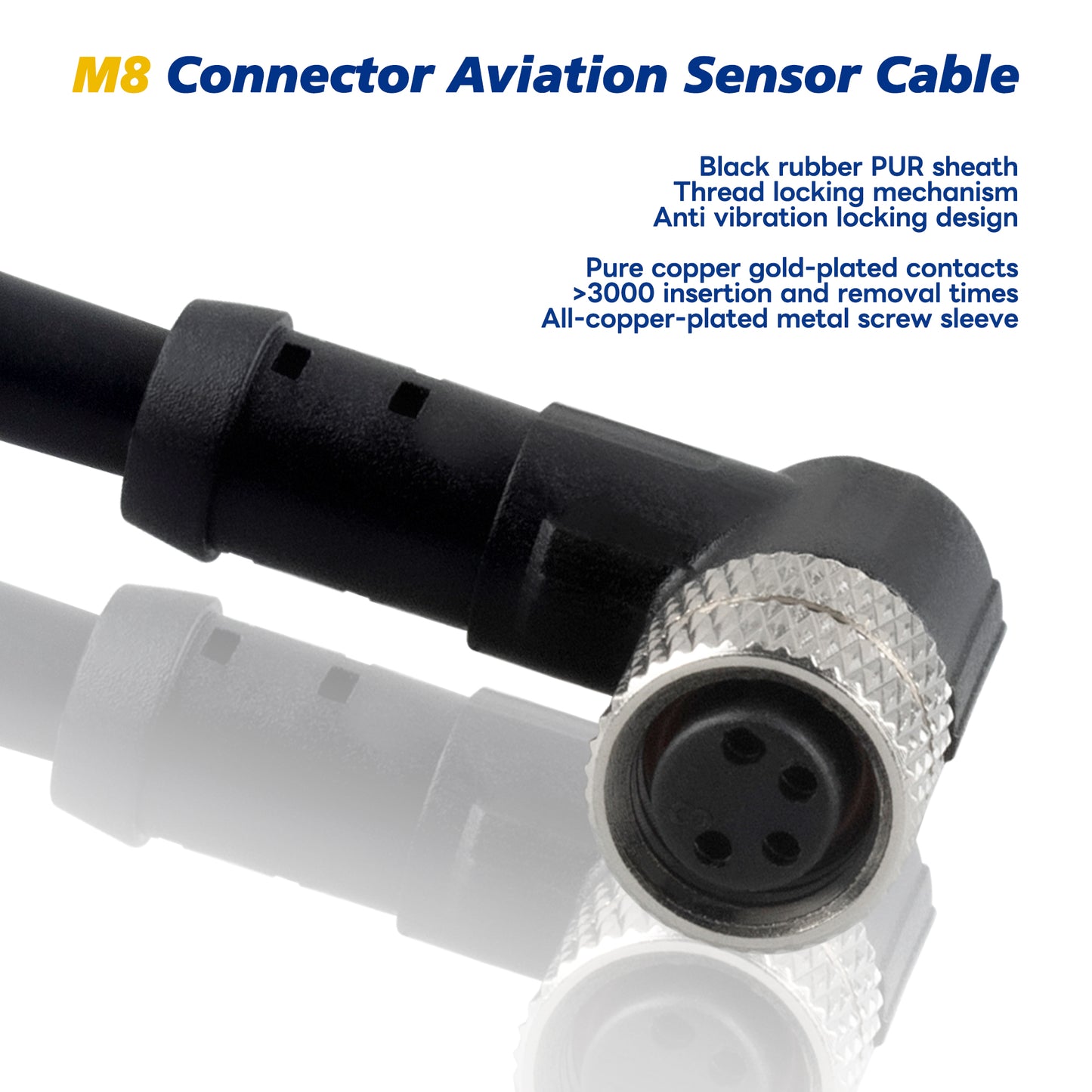

- High Quality: M8 4-Pin Male Circular Aviation Connector use professional high quality black rubber bakeute makes it Insulation and flame retardant.Thread locking mechanism,anti vibration locking design,8mm thread joint.Waterproof Industrial Sensor connector use All-copper-plated metal screw sleeve,pure copper gold-plated contacts,robust and corrosion-resistant,durable,while ensuring the stability and reliability of data and signals.
- Safe and Reliable: M8 Waterproof Aviation Sensor Cable 6.6Ft 24 AWG aviation connector cable is made of high quality PVC+PUR Jacket,,which protects the wire against abrasion, resistant to sunlight and chemicals.The rated operating temperature up to 80℃/176℉.24 gauge AWG*4 Conductor,17 strands of 0.16mm 99.99% Oxygen Free Copper Conductors are inside each cable.High Precision Oxygen Free Copper - Compared with aluminum material, it has lower resistance and higher conductivity.
- DIY & Quick Installation: M8 Aviation Socket Electrical Cable—No tools required for installation and removal,8mm Field Assembly 4 Pin Connector Cable provide quick and easy connection between field devices and terminal connections, flexible and convenient plug-and-play.Single ended Cable makes you to choose the type of connector at the other end according to your needs -A wider DIY range allow you to freely combine and match to complete the work efficiently and quickly.
- Application: The M8 Industrial Circular Connector Cable is suitable for Data Communication and I/O connection on-site installation,and widely used in industrial automation, PLC systems, commercial electronics, such as building construction, high-speed rail, intelligent manufacturing, and the automotive industry.,can be easily connected to proximity switches,photoelectric barriers, flow monitoring devices,sensor devices and actuator devices and field bus components.
