Technical selection details
| Interface | M12 |
|---|---|
| Pins | 5 |
| Mating contacts | Female |
| Exit direction | Straight |
| Package | 5 pieces |
| Other end | Panel mount |

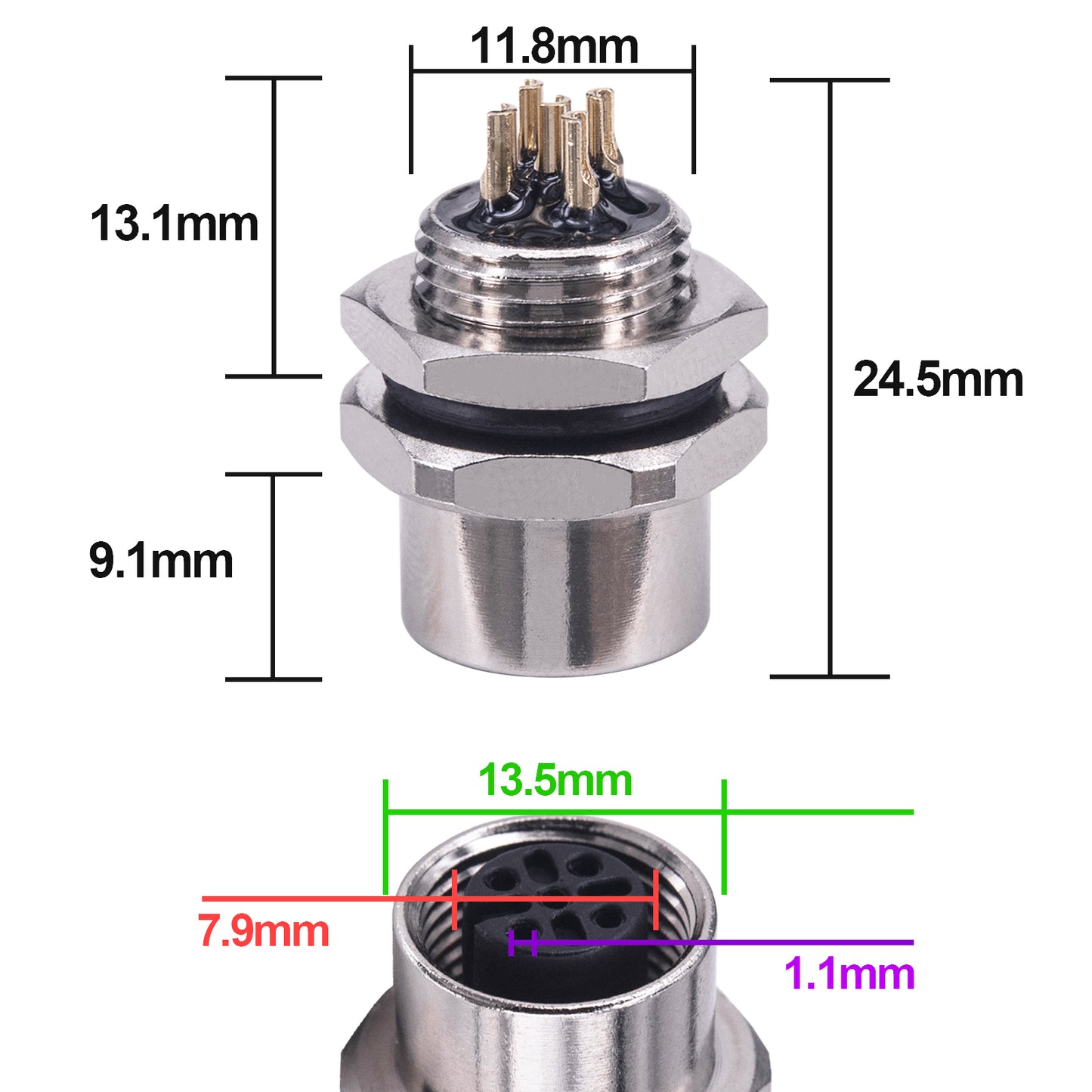

Match the pin assignment and dimensions to your equipment before ordering.
Need a drawing or pinout?
Send the device model or a connector photo. We can check the matching interface and available technical information.
Request drawing / pinout ↗Need a different configuration?
Ask about another length, connector, cable color or termination.
Customize this connection ↗Product details
- M12 Connector: M12 Field Wireable Connector,A Code,5Pin,Female,Straight,For Cable,Screw-Joint,Unshield,IP67 Waterproof.

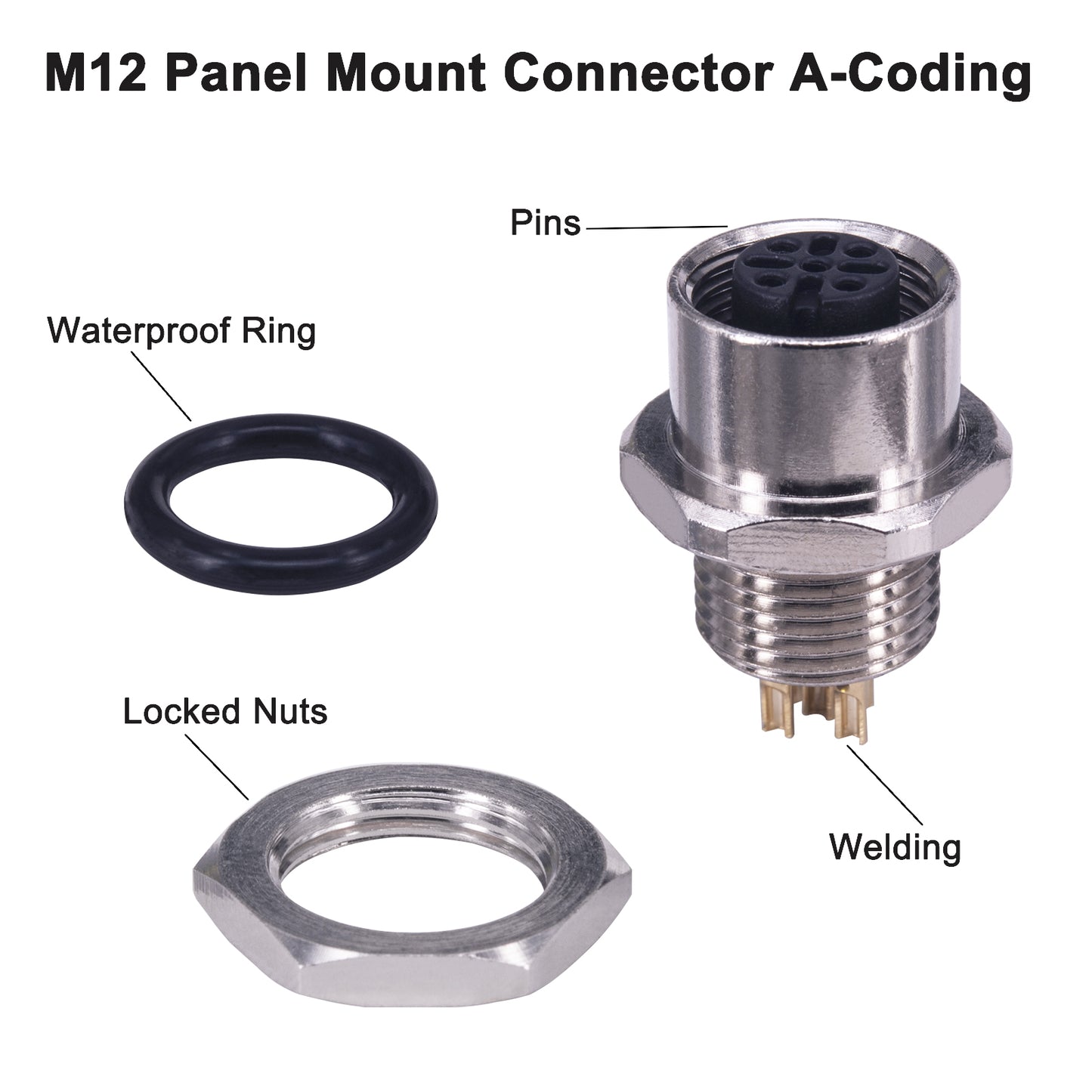

- High Quality: M12 Aviation Panel Back Mount Flange Socket Sensor Connector use professional high quality black nylon plastic makes it Insulation and flame retardant.Thread locking mechanism,anti vibration locking design,12mm thread joint.waterproof connector use All-copper nickel-plated metal screw sleeve,pure copper gold-plated contacts,robust and corrosion-resistant,durable,while ensuring the stability and reliability of data and signals.

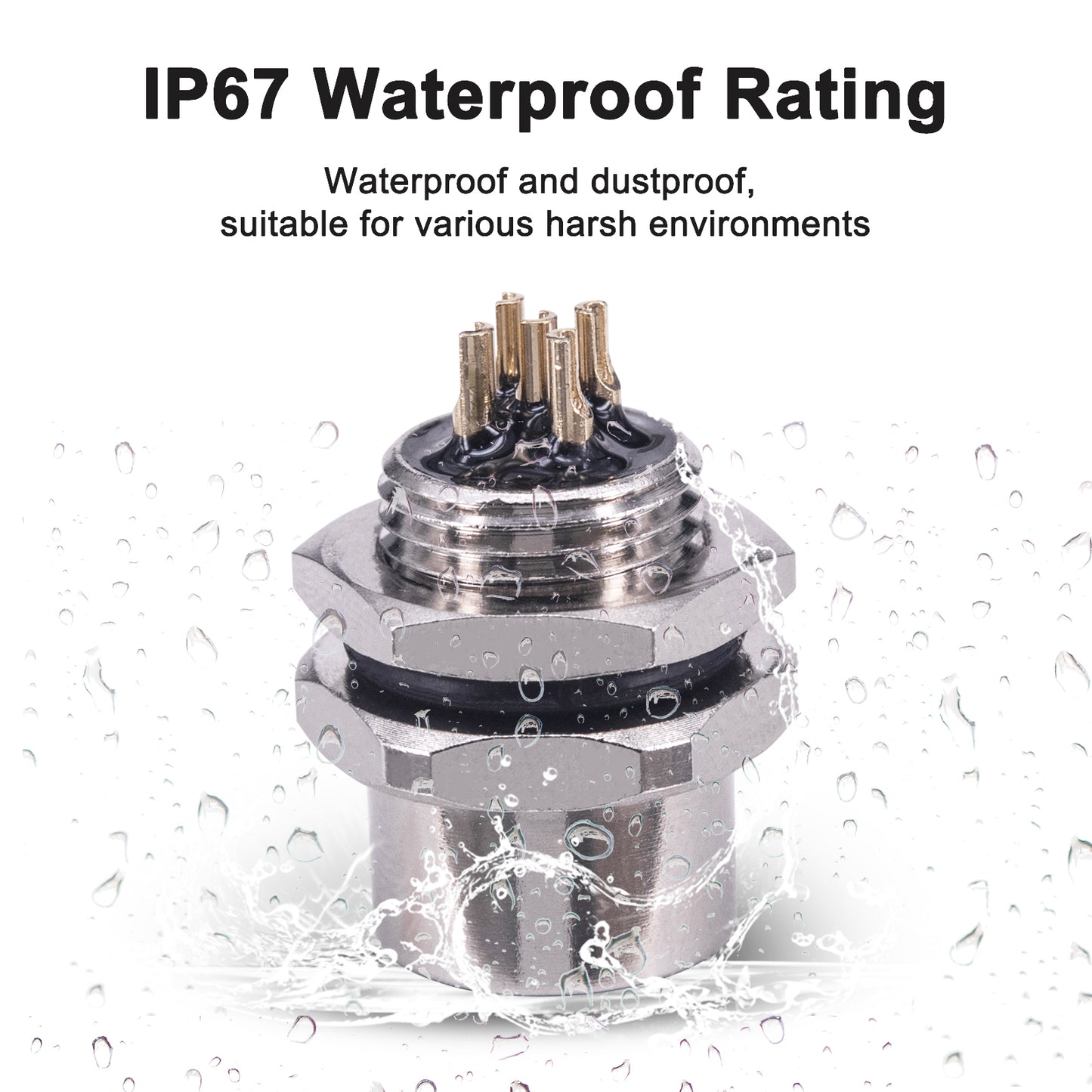

- IP67 Waterproof: The Waterproof 12mm Aviation Wire Connector are IP67 Compliant. High elastic rubber ring and clamping nuts provide a perfect waterproof /dust-proof, prevent the network parts from moisture, dirt rain & snow and insects for quality connections.
- Wide Compatibility: 12mm M12 Metal Chassis Thread Panel Connector Socket widely used in signal electronic connector of aviation,computer, various kinds of instruments and industrial cameras,electric bicycles,factory automation,can be easily connected to proximity switches,photoelectric barriers, flow monitoring devices,sensor devices and actuator devices and field bus components.

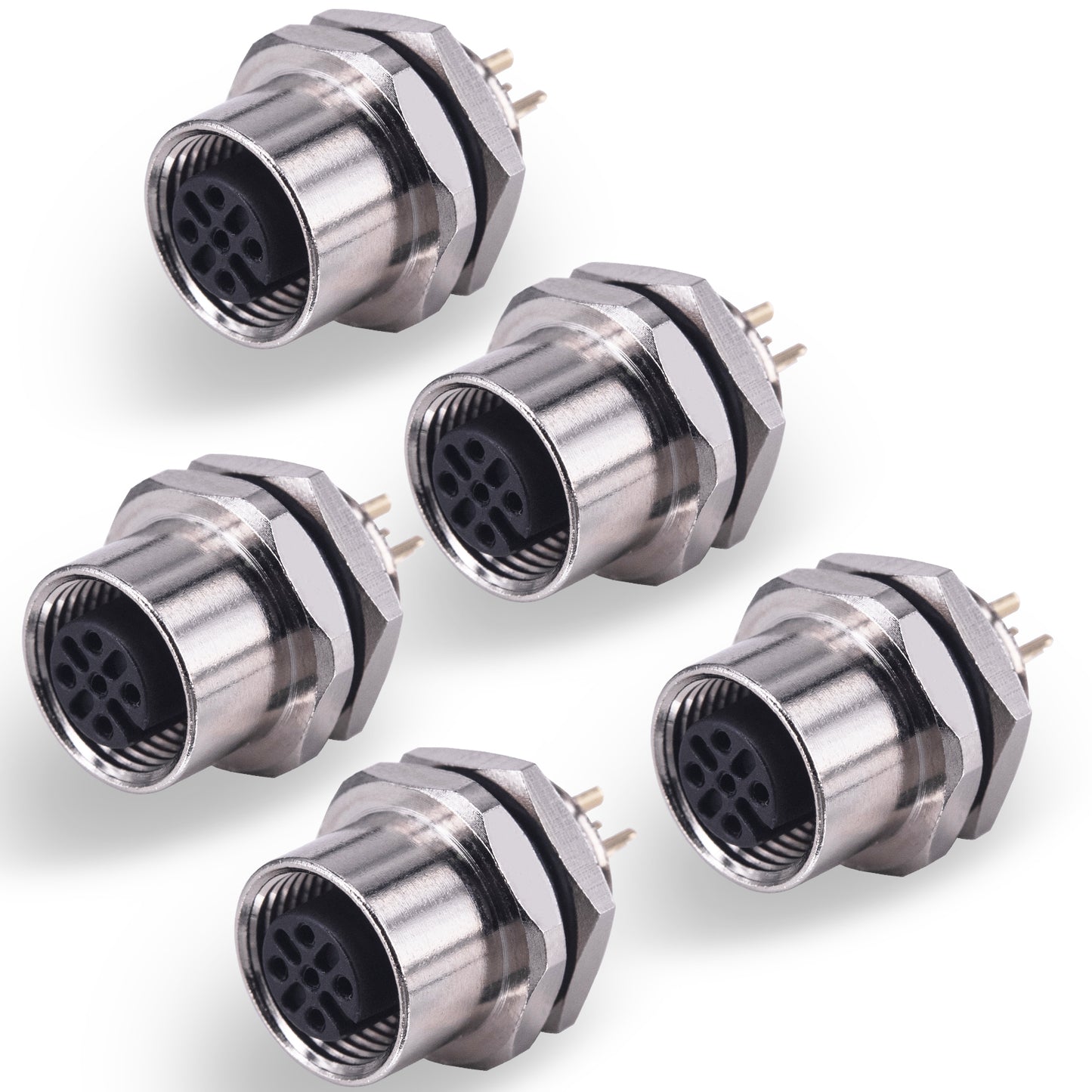

- Package includes: 5*Female 5 Pin Aviation Plug
