Technical selection details
| SKU | LQ-5973 |
|---|---|
| Interface | M12 |
| Coding | D |
| Pins | 4 |
| Mating contacts | Male |
| Length | 1 m |
| Cable category | Cat5e |
| Exit direction | Straight |
| Cable color | Green |
| Jacket | PVC |
| Other end | RJ45 |
Match the pin assignment and dimensions to your equipment before ordering.
Need a drawing or pinout?
Send the device model or a connector photo. We can check the matching interface and available technical information.
Request drawing / pinout ↗Need a different configuration?
Ask about another length, connector, cable color or termination.
Customize this connection ↗Product details

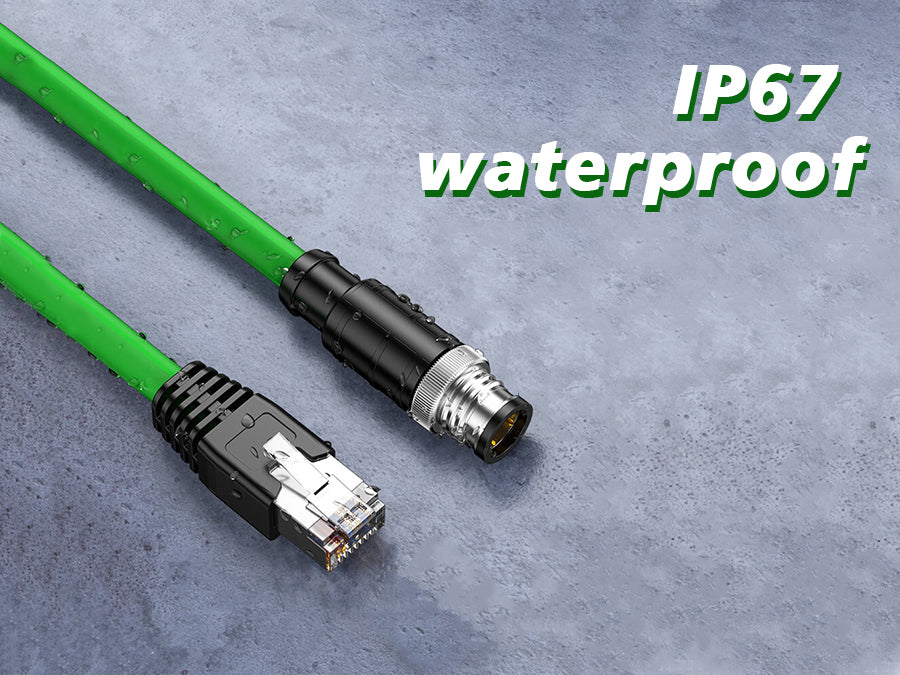

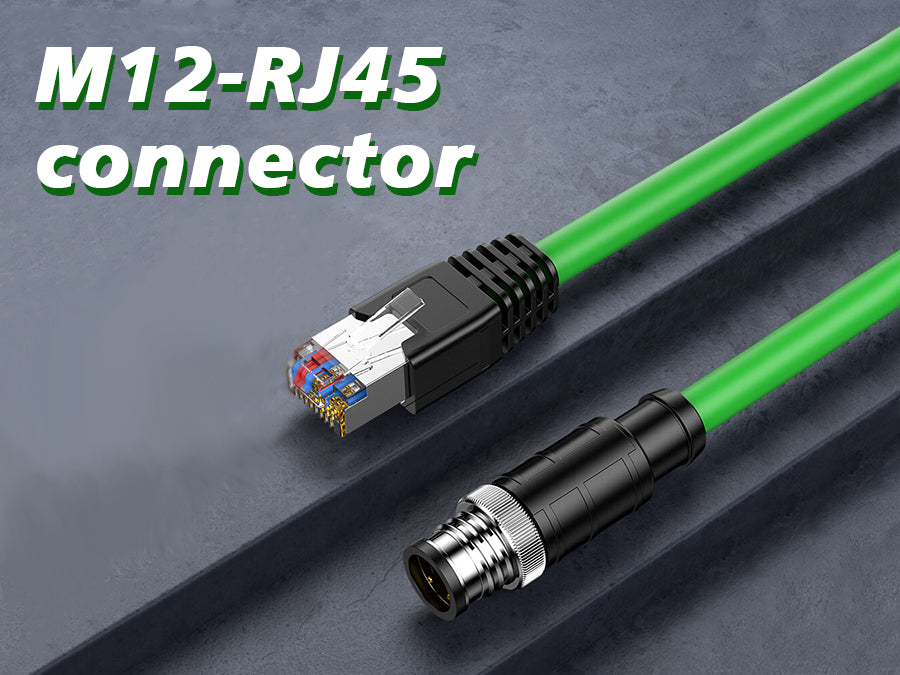

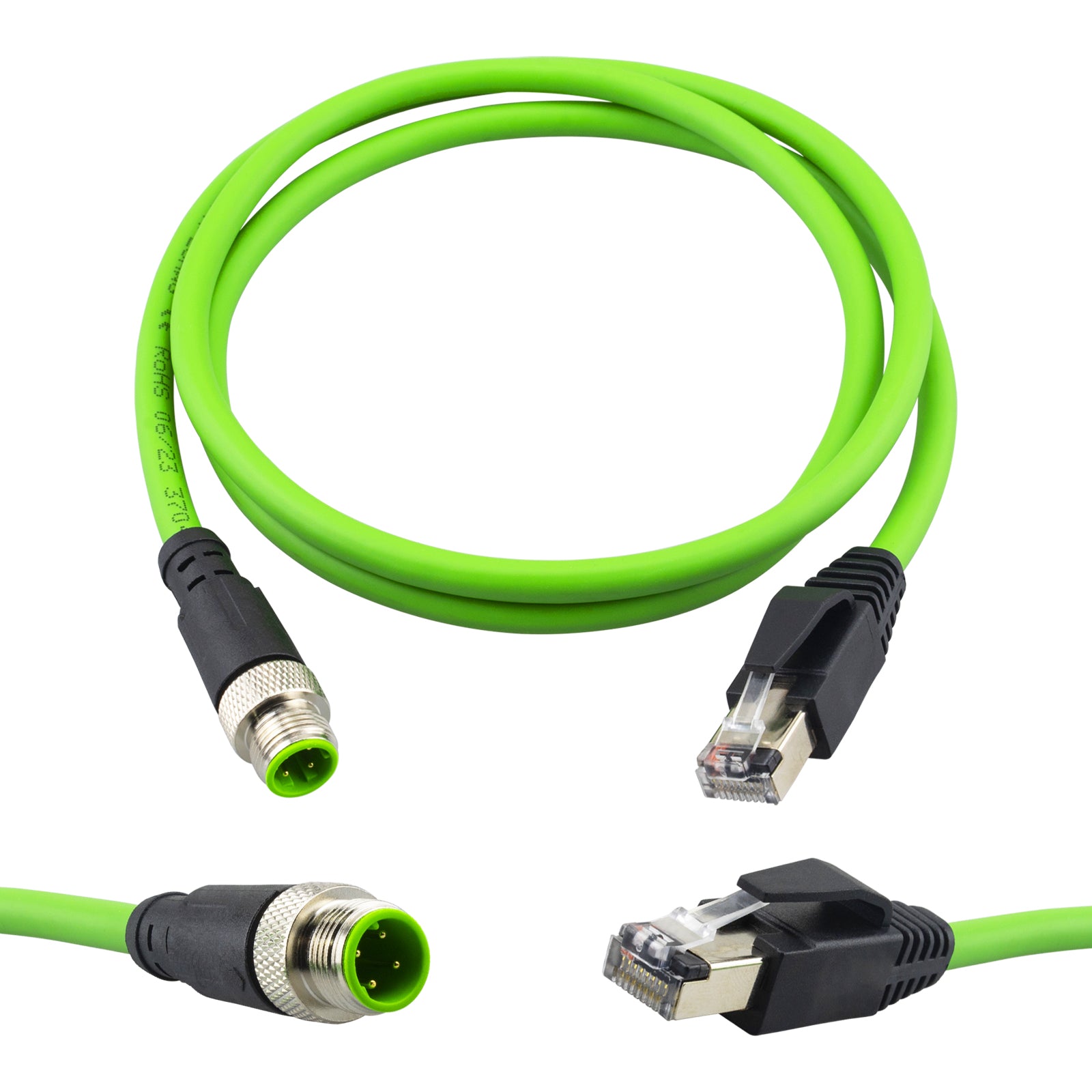

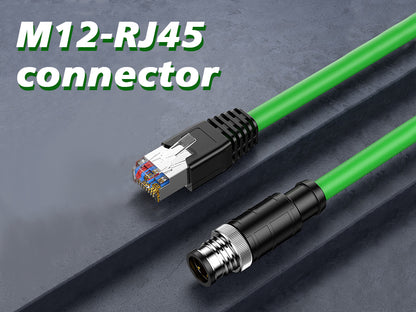

M12 4-pin D-coded male to RJ45 cable assembly, 1 m / 3.3 ft. Model: LQ-5973.
Configuration
- M12 D-coded, 4-pin male connector

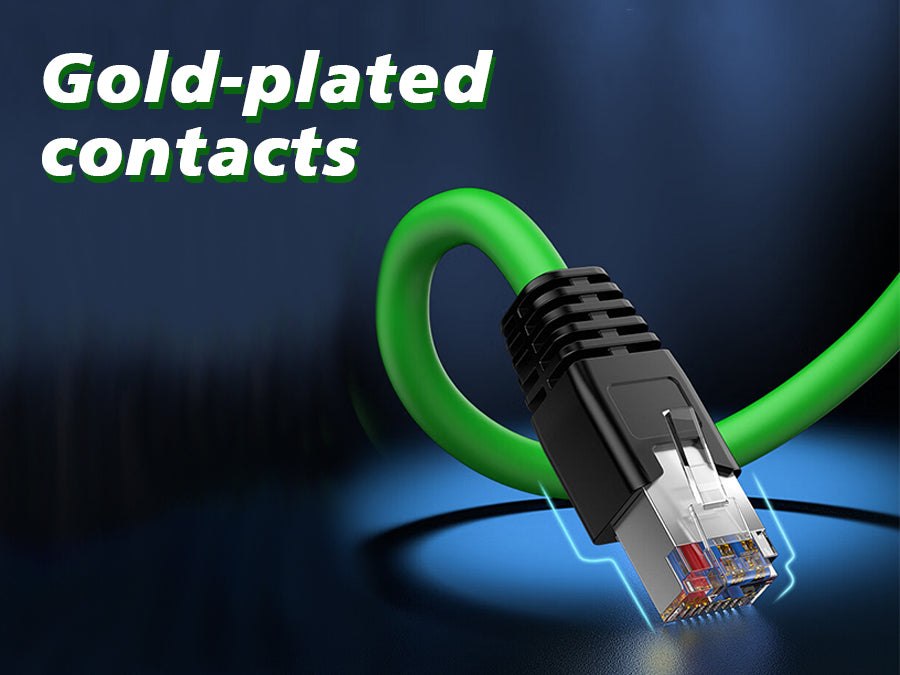

- RJ45 plug at the other end
- Green PVC cable jacket

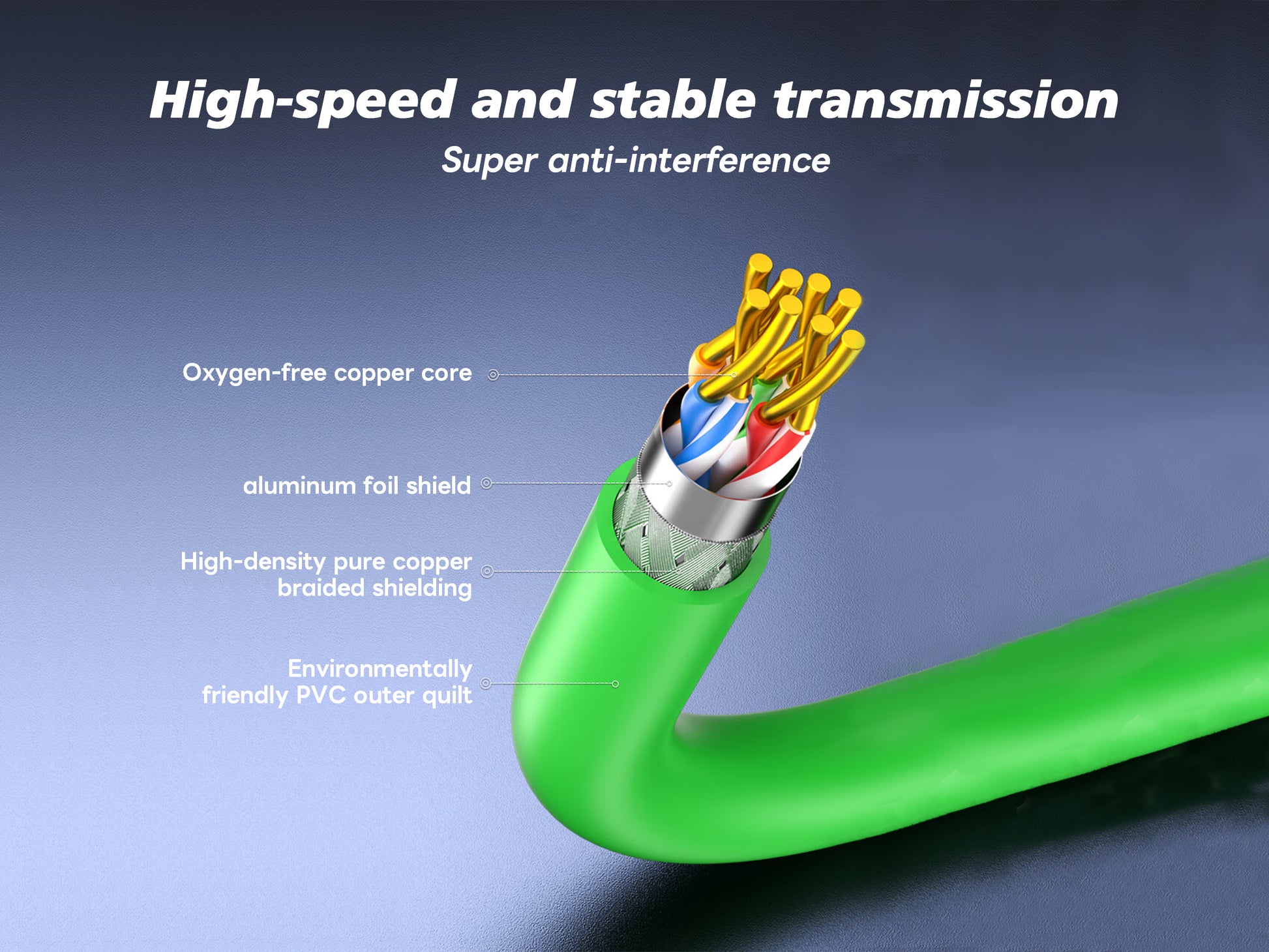

- Shielded Cat5e cable assembly
- Package: 1 cable assembly
Before ordering
Confirm the device connector, pin assignment and installation requirements. For a wiring diagram, dimensional information or another length, request configuration support.
